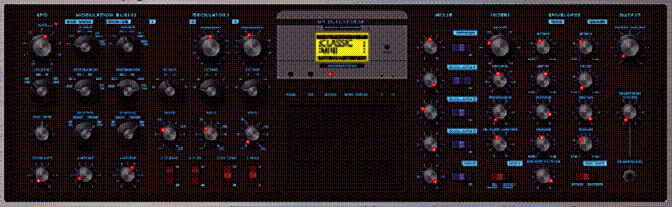

The Voyager Panel Settings is the second component in the
Editor window. The Voyager Panel Settings shows the current parameter settings
of the Voyager’s knobs and switches. This is handy to give a visual reference
as to how the selected preset is setup on the Voyager. While most of the knobs
on the panel have a red dot to indicate their settings, pointer knobs and
switches on the display indicate their actual positions. The yellow LCD displays
the name of the currently selected preset. The values (in 8 bit and 16 bit) and
the name of the currently parameter being adjusted are displayed on the black
screen while adjustment is occurring.
The panel is interactive and will respond to parameter
changes made from the Voyager. Moving a knob or switch on the Voyager will
immediately update the same control on the display panel.
Note: The Voyager Panel is not display only. You can adjust the display by clicking or dragging any onscreen display control. The display in completely interactive: adjusting to changes made in either Classic or Expert Edit views or by actual physical changes on the Voyager.
