Alesis Serial Midi Interface is NOT required for use with QSEDITPRO. QSEDITPRO will work with any midi interface. However there are some advantages of using serial cable midi connection:

To setup your computer to use Serial Cable you need special cable with D-Sub connector on one side as Mac mini 8-pin Din connector on the other side.

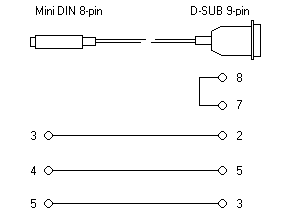

Here is a serial cable pinout:



Also you need to install Alesis Serial Driver: SerialDriver_v304.zip

The Alesis Serial Driver may not work correctly with  Win2000. If you have problem with running Alesis Serial Driver with Win2000 you may contact us for suggestions and solutions.

Don't want to make your own cable?
