1. Click on "Programs" button:
2. The list will now display list all PROGRAMS in Ram Bank A that are loaded into the editor:
3. Select and click on any program that you want to change/edit.
4. After you click on the selected program, single program data will be requested from the synth and loaded into the editor. Now you should see basic patch information displayed on the panel above:
Oscillator mode, OSC1 and 2 multisounds assigned to this patch, levels, Pan, Send settings and effect routing.
5. Now you selected program and received it from 05w itself, but you can also get the program data for editing from the editor's memory by clicking the right mouse button on list and selecting "Edit..." for pop-up menu:
6. After selecting a patch for editing click on the "EDIT" button and the "Program Edit” window will be displayed.
7. From this window you can edit ALL 05w program parameters. Let’s change a few:
Click on Osc1 section and a smaller window will open with a list of all the multisounds available :
Here you can assign different multisounds to oscillators by simply clicking on different multisound names.
Meantime, you can audit changes without moving away from the computer by pressing the computer keyboard keys.
Try C V B N H for example, to hear 05w play modified program. For complete list of computer keys assignment please check “
Playing Computer Keys”.
8. After selecting a new multisound, click "Done" or fold down Osc Multisound window. You do not have to close any editing windows. You can have them all open to quickly move from adjusting one parameter on the other whenever your screen size allows.
9. By clicking various parameter value labels control slider will pop up allowing you to change values.
10. You can also change program parameter values in the "Parameter Group Controls” window.
To display them click on the “Group Parameter” labels
or the “Graphical Envelopes” label:

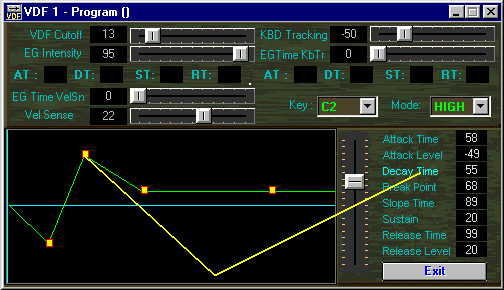

11. Changing VDF, VDA and Pitch EG envelopes can be done either by clicking on labels (Attack Time, Attack Level etc.) and pulling a slider or by dragging envelope points with a mouse.
12. You can rename program by typing over the name in a text box:

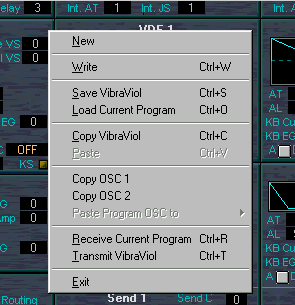

13. If you still need more options, click right button of mouse to display an additional pop-up menu.
14. You may save or transmit changed program (Transmitting program is not necessary unless you were performing editing OFF-LINE). You can also copy parameters of separate oscillators in order to use their settings in another program. If you paste copied OSC all OSC1 or OSC2 will be transferred except the multisound number.
