EDITING PROGRAM PARAMETERS

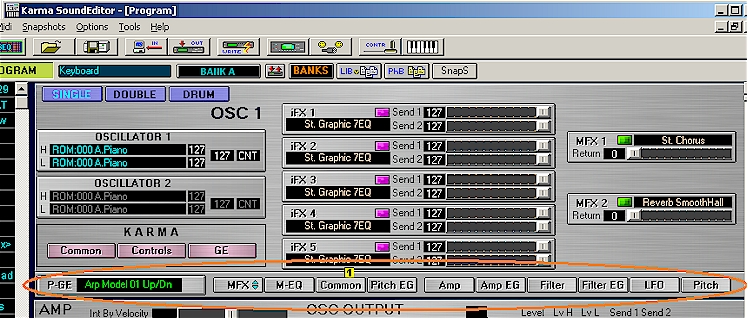

In addition to the parameter set up common to both Combination Edit and Program Edit there is an additional task bar containing buttons linking to the controls unique to Program Edit.

Use Mode button to switch to PROGRAM (PLAY) MODE. Use to move into Program Edit Mode.

Except for the Drum settings these are accessed by either scrolling down to the active part of the window or by use of the buttons on the task bar.

Drum settings are accessed through the drum button found a the top of the window beside the oscillator selection buttons. Drum Kit editing is dealt with in Editing Drum Kits and Drum Instrument Library tutorials.

OSCILLATORS

There are two Oscillators available to create programs.

Use the or buttons to select OSC 1 or OSC 1 and OSC 2. Clicking on the Oscillator panel will load the parameters of the selected program into the editing features accessed through buttons as described above (see .)

Each oscillator has high and low multisound inputs. These are selected by clicking on name boxes H and L .

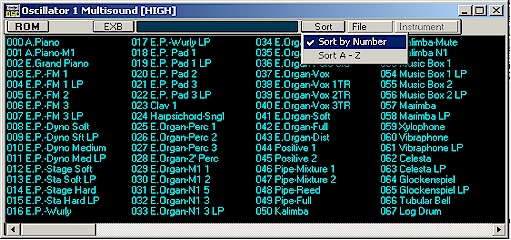

The Oscillator Multisound window allows for selection from ROM. Sorting by Number or Alphabetically and from file.

Clicking on value boxes at (see above) opens a separate window that allows for an abbreviated Osc output adjustment more fully adjusted in OSC OUTPUT panel found below with the AMP.

When in double oscillator mode the relative levels of both oscillators can be adjusted to fine tune the oscillators mix ratio.

P-GE

To display parameter settings click on the P-GE panel:

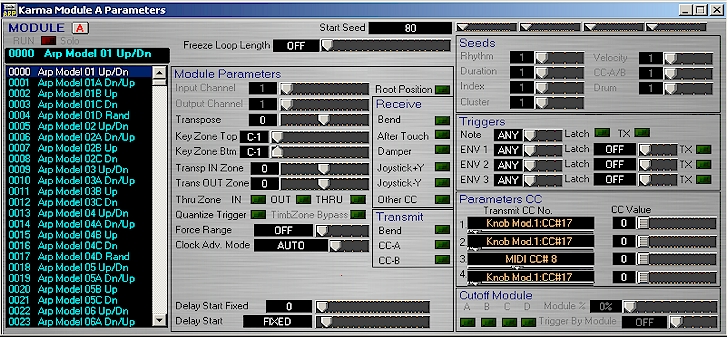

Use Module Parameter window to change P-GE settings.

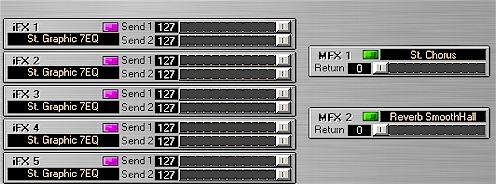

MFX and INSERTS

You can use panel sliders to change Send or Return settings or click on switches to turn effects ON/OFF.

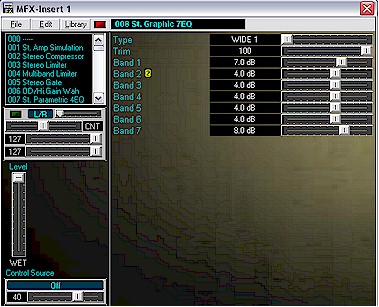

By clicking on Effect panels

 you can display full effect setting of selected MFX or Insert FX.

The button removes the MFX and iFX panels, leaving only the oscillator panels in view, from the active screen to give more working room for editing functions.

(see MFX and MFX Library help files for more in-depth information.)

MASTER EQ

Clicking the button opens the master equalizer window.

From here gain (low, mid and high), frequency (low, mid and high) as well as mid Q  adjusted with the sliders.

The choice of controller for low and high dynamic modulation is done though name boxes:

COMMON PARAMETERS

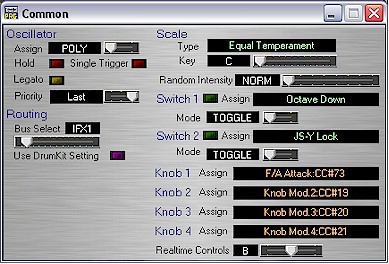

To edit Common settings click button to display Common parameters window:

Note that Knobs 1 - 4 can be assigned to control of choice by clicking on name box and selecting from list. Drum kit settings can be used by clicking .

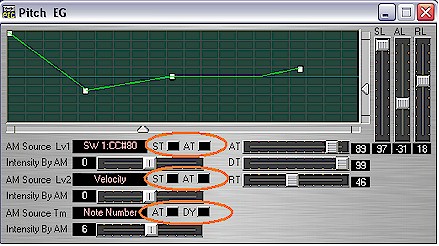

PITCH EG

When the button is selected the Pitch EG window is brought into view. From this window all Pitch EG parameters can be adjusted. An additional feature is the fully interactive graphical display of parameters that allows for easy and instant changes of the wave form directly by the mouse. Any changes to the graphical display are instantly mirrored by associated slider and numerical value changes. AM Source Lv1, Lv2 and Tm can be changed by clicking on name boxes and selecting from list. Polarity switches modify polarity attributes of waveform (circled below.)

PATCH ASSIGNMENT

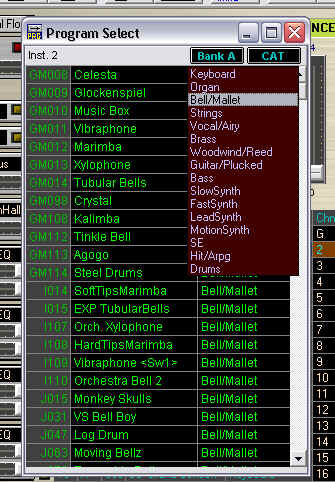

To select a different patch for the selected track, click on the Program name.

You can assign the Programs for the selected track either by using the list displaying Programs in banks or by a Program categories.

AMP

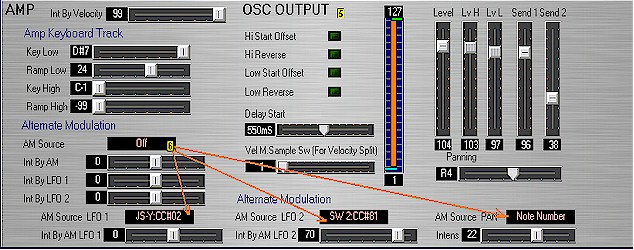

When the button is selected the Amp panel is brought into view. From this panel all Amp parameters can be adjusted. The OSC OUTPUT is fully accessed in this panel as well . Alternative Modulation (AM) source can be selected by clicking on name box as can AM for LFO 1, LFO 2 and PAN.

AMP EG

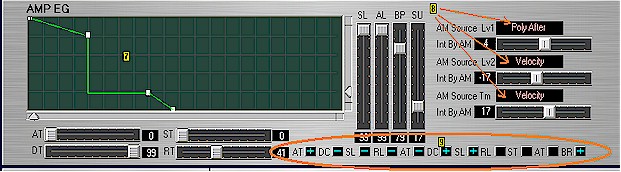

When the button is selected the Amp GE panel is brought into view. From this panel all Amp GE parameters can be adjusted. An additional feature is the fully interactive graphical display of parameters that allows for easy and instant changes of the wave form directly by the mouse. Any changes to the graphical display are instantly mirrored by associated slider and numerical value changes. AM Source Lv1, Lv2 and Tm can be changed by clicking on name boxes and selecting from list. Polarity switches modify polarity attributes of waveform.

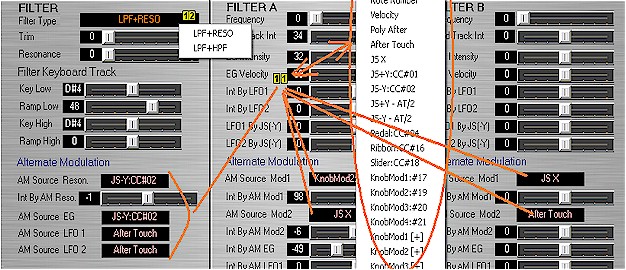

Filter

When the button is selected the Filter panel is brought into view. From this panel all three Karma Sound Editor filter parameters can be adjusted. All AM sources can be changed by clicking on name boxes and selecting from list. Filter type is selected from name box .

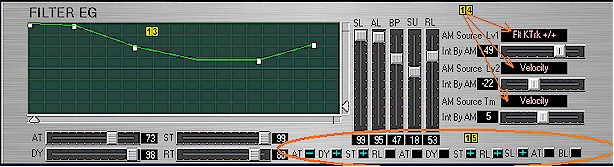

Filter EG

When the button is selected the Filter EG panel is brought into view. From this panel all Filter GE parameters can be adjusted. An additional feature is the fully interactive graphical display of parameters that allows for easy and instant changes of the wave form directly by the mouse. Any changes to the graphical display are instantly mirrored by associated slider and numerical value changes. AM Source Lv1, Lv2 and Tm can be changed by clicking on name boxes and selecting from list. Polarity switches modify polarity attributes of waveform.

LFO 1 and 2

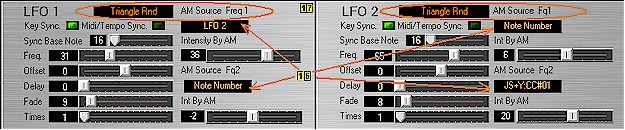

When the button is selected the LFO panel is brought into view. From this panel all LFO 1 and LFO 2 parameters can be adjusted. Again all AM sources are selected from name windows and chosen from pop-up list . Waveform characteristic is selected left clicking on   box list for both LFO 1 and LFO 2 .

Pitch

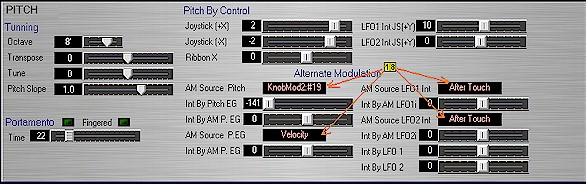

When the button is selected the Pitch panel is brought into view. From this panel all Pitch related parameters can be adjusted. Again all AM sources are selected from name windows and chosen from pop-up list . Portamento and Fingered selections are turned on and off by using the toggle.
