CAKEWALK INSTRUMENT DEFINITION FILES

Triton-EditPro can automatically generate scripts for most popular software sequencers: Cakewalk and Cubase .

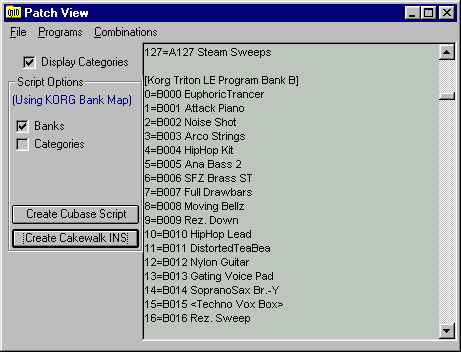

To create Instrument Definition  file (.ins) for Cakewalk/Sonar use Patch View window (Under File menu of the main editor's window):

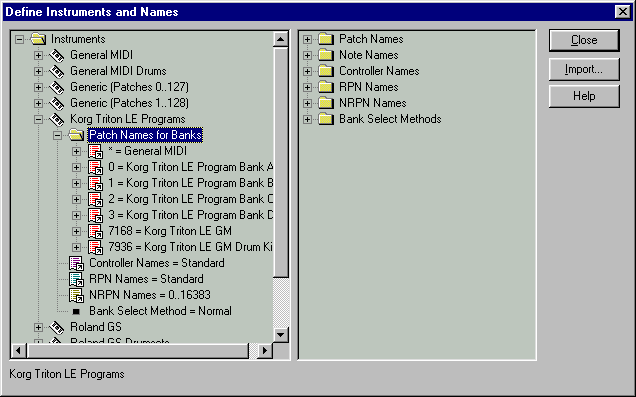

For more information of how to set up Instruments in Cakewalk/Sonar, please check Cakewalk/Sonar documentation.

There are two types of scripts created by Triton-EditPro depending on an options you select:

"Instrument Definition for Triton Program and Combination Banks" contain names of User Programs and Combinations from all banks that are loaded to Triton-EditPro, Program GM Bank and GM Drum Kits.

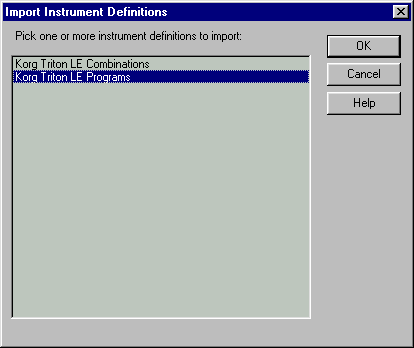

Instrument Definition for Triton Program and Combination Banks:

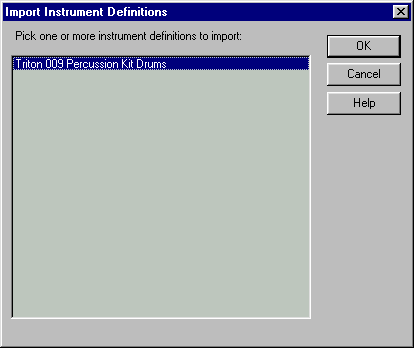

Instrument Definition for Triton Drum Kits:

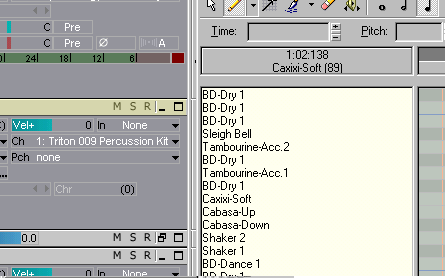

To create Instrument Definition for Triton Drum Kit use file menu in DRUM KIT EDIT window. Created INS will contain Drum Map for selected DRUM KIT.
