TRITON BANKS MANAGER

Triton Banks Manager is a powerful organizational tool of Triton Edit Pro. Banks can be structured and saved in a form that is most efficient for the user. The Banks manager can be used to organize or check on the state of the loaded banks before opting to send the data to Triton and/or the Editor. This feature is an important safeguard to accidental overwriting of unsaved loaded programs in Triton RAM.

Triton Bank Manager is accessed when in Program, , or Combi, , Modes.  From File drop down menu select Triton Banks Manager .

Once in the Bank Manager window the user can elect to start New or load data in two ways. Load All User Banks Data or Load from a previously saved file using the File drop down menu. These files are saved with .tri extension. These are not PCG files though PCG files may be loaded.

Data can also be loaded from Program, Combi, Drum Kit and Pattern files individually by selecting the tool menu button and selecting Load Bank  from their respective menu.

Global settings can be Inserted as well from tool bar button . Select option from dropdown menu.

All loaded Program or Combi Banks, Drum Kits, Patterns and Global Settings can be removed entirely through the same menu options if needs be.

After loading the data from the selected source to Triton Bank Manager the bank is selected by clicking one of the tool bar buttons causing the Manager to load the Program and Combi bank list for organizing.

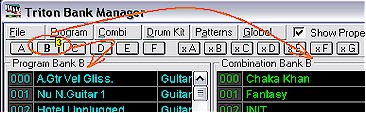

Individual programs can be copied and pasted between Program banks. By example, if you have selected Bank B (as in image above) you can right click on "A Gtr Vel Gliss," select Copy, then change banks by clicking on , this loads into the Program Bank list all of Bank A,  by right clicking on a list member and selecting Paste you will over write the program in A with "A Gtr Vel Gliss" from B.

Note: you can NOT copy and paste between Program Bank and Combination Bank list.

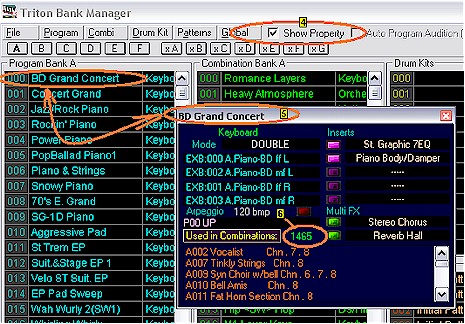

Another useful feature of the Triton Bank Manager is the Show Property function . Click checkbox to activate. When activated, the selection of a program in the Program Bank list box generates a summary of Parameters, Mode and list of Combinations program is used in. This will be displayed in a separate window . By clicking on the portion of the window the number of combinations this program is used in and the list of the combination names, that includes channels used, is generated immediately below .



To the right of Show Property, in Program (Play) Mode, is the Auto Program Audition feature . The program selected is automatically available in Editor for use. It is only available in Program Mode.

The individual programs can all be renamed within the Bank Manager by double clicking and retyping the name .

TRANSMITTING DATA TO TRITON

When all desired work is finished on the banks Bank Manager allows for all work to be sent to Sound Editor and/or Triton through the File menu  .

When Transfer All to Editor is selected the program sends the reorganized banks to the Editor and then prompts the user with a pop up window as to weather the data should be sent to Triton as well.

If Ok is selected the program will prompt for user to Set Intervals for transfer for Programs, Combinations, Drum Kits and Patterns .

The bank data Transmission  to Triton has to be slowed down for Triton to process the incoming  data. In Tri-EditPro long transmission time can be optimized by setting time intervals between dumps. Default values  were tested and should work correctly. In case, when at the end of the transmission you see "Midi Receive Error" displayed on Triton's LCD, interval time should be increased.

Sync to Triton option ensures correct transmission but is much slower since Tri-EditPro has to wait for "received complete" signal from Triton before sending another data dump.
