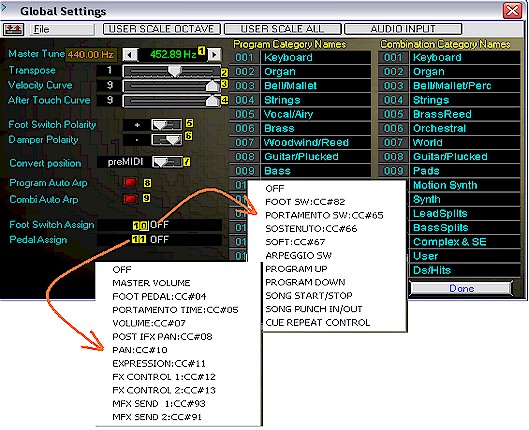

GLOBAL SETTINGS

Global Settings can be edited from any of: Program Play, Combi Play or Sequencer Modes by clicking on the button in the top tool bar.

Within the Global Settings window the following is adjustable:

• Master Tune - 427.47 Hz to 452.89 Hz ; reset to 440.00Hz  by clicking on  .
• Transpose - Values from: -12 to +12
• Velocity Curve - Values from 2 to 9
• After Touch Curve - Values from 2 to 9
• Foot Switch Polarity - +/-
• Damper Polarity - +/-
• Convert Position - preMIDI/postMIDI
• Program Auto Arp - ON/OFF
• Combi Auto Arp - ON/OFF
• Foot Switch Assign - Click on and choose from menu
• Pedal Assign - Click on and choose from menu.

The Global Settings window starts with default settings. If you have different settings than that already in play current ones are Received by selecting on Send/Receive icon .

To reset to default values use File menu and select Initialize Global Settings .

Program and Combination category names can be changed by clicking on the name boxes in panel to right and simply retyping the new name.

New settings are Sent and current ones are Received by selecting on Send/Receive icon .

Loading and Saving Global Settings are done through File menu. Global Settings are save with extension .gbl .

Finish by clicking on button when satisfied.

See User Scale Octave, User Scale All and Audio Input tutorial for use of these functions.
