CREATING CUBASE DRUM MAP

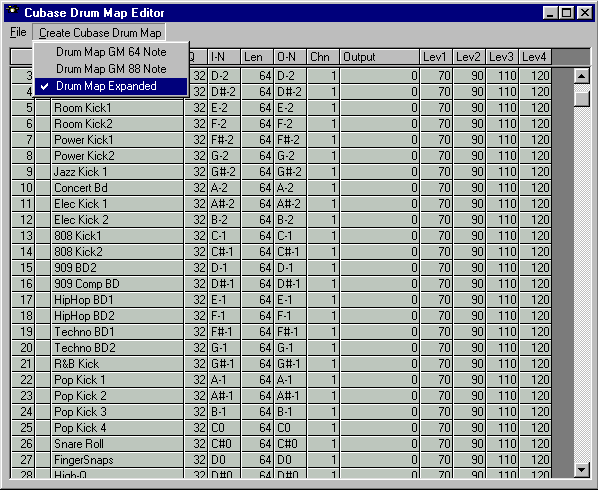

You can create Cubase Drum Map with names of RS Drum Kit keys assigned to notes using  RSEdit's built-in Cubase Drum Map editor.  Cubase Drum Map editor can be accessed from Drum Kit Edit window.





RSEdit's built-in Cubase Drum Map editor can create drum maps in 3 different formats:

Roland RS Drum Kit contains 128 keys so you can use whatever format is convenient for you. As you may notice In/Out Notes in the map are off by one octave. For example: note A0 in Roland RS  is equal to A-1 on Cubase. This is not a mistake. Roland and Cubase just named them in different way.

You can edit drum sound names, midi channel, output and velocity levels.

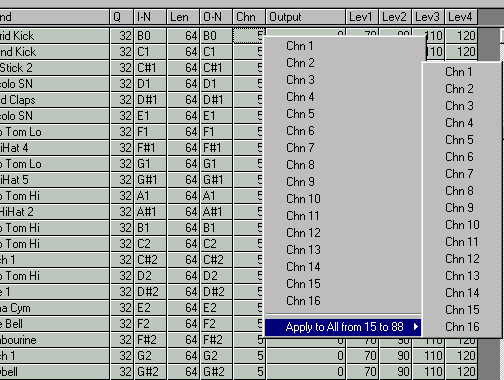

There is an option to change multiple note Midi Channel or output at once:



Since Cubase midi setup (Setup MME) introduces map to midi interfaces, selecting output in  RSEdit's built-in Cubase Drum Map editor is done by selecting number 0 to 12 where output "0" corresponds to a first/ most top interface in Cubase.



You can audit/play key notes by clicking on fields shown above.
