MIDI Setup

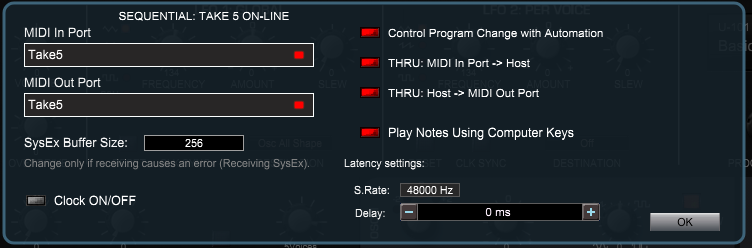

Select MIDI iN and MIDI OUT ports that the TAKE 5 is physically connected to.

The status text should display: SEQUENTIAL TAKE 5: ON-LINE. If not connected then manually check GLOBAL settings on the TAKE 5.

For the PlugSE to communicate with the TAKE 5, the Global SysEx (system exclusive) settings should be set as follows:

MIDI Sysex On: On

MIDI Sysex Cable: MIDI  or USB  depending on your connection.

MIDI Out Select: MIDI  or USB  depending on your connection.

The PlugSE controls more than a thousand parameters and is using NRPN commands that are received and transmitted. To enable NRPN controllers set:

- MIDI Param Snd: NRPN

- MIDI Param Rcv: NRPN

- MIDI Control On: On



Note: All of the above GLOBAL settings changes must be done manually on the TAKE 5 panel. In order to save changes exit the Global mode.
