MIDI Setup

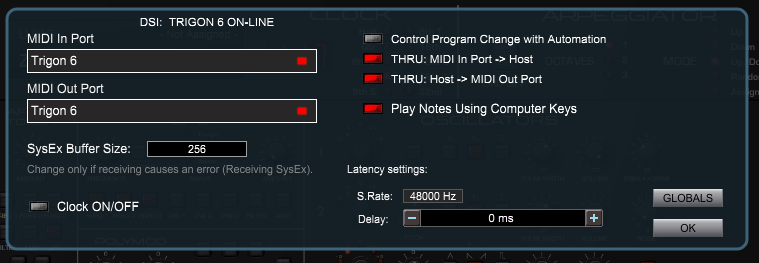

Select MIDI iN and MIDI OUT ports that the TRIGON-6 is physically connected to.

The status text should display: SEQUENTIAL TRIGON-6: ON-LINE. If not connected then manually check GLOBAL settings on the TRIGON-6.

For the PlugSE to communicate with the TRIGON-6, the Global SysEx (system exclusive) settings should be set as follows:

- MIDI SysEx Enable = ON

- MIDI Out Select = USB or MIDI depending on a connection.

The PlugSE controls more than a thousand parameters and is using NRPN commands that are received and transmitted.

To enable NRPN controllers set:

- MIDI Param Send = NRPN

- MIDI Param Receive = NRPN

- MIDI Control Enable = ON



Note: All of the above GLOBAL settings changes must be done manually on the TRIGON-6 panel. In order to save changes exit the Global mode.
