MIDI SETUP

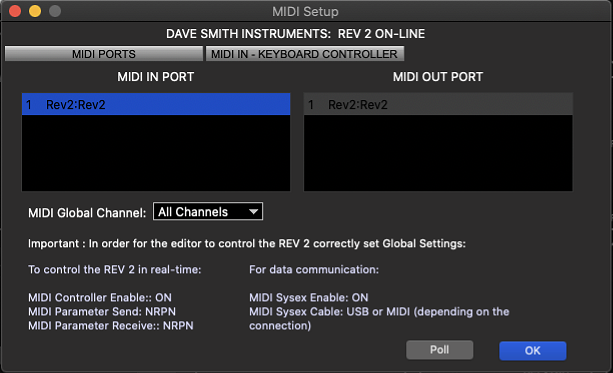

The MIDI setup window (Control+M) can be found under the MIDI window menu. In the MIDI Setup window, select the MIDI IN and OUT ports to which the Prophet REV2 is connected and set the MIDI Channel to match the MIDI channel on the Prophet REV2.
Once the proper ports and MIDI channel are selected, you should see the current Prophet REV2 software version at the top of the MIDI Setup window as shown. This confirms that SoundEditor is communicating with the Sequential Prophet REV2.
To establish a proper MIDI communication. Make sure that the Global Parameters are set MANUALLY (not through the computer) on Prophet REV2 as follows.
To control the Prophet REV2 in real-
MIDI Channel: All
MIDI Param Send: NRPN
MIDI Param Receive: NRPN
MIDI Controller Enable: ON
For data communication:
MIDI Sysex Enable: ON
MIDI Sysex Cable: USB or MIDI (depending on your connection)
MIDI Out Select: USB or MIDI (depending on your connection).
Also, please make sure that the Editor and the Prophet REV2 have the same MIDI channel or Prophet REV2 MIDI channel is set to ALL.
If you still experience connectivity problems, please close all other applications that may be using MIDI ((Midi Ox, Midi Yoke, your DAW, etc.) and then try it.

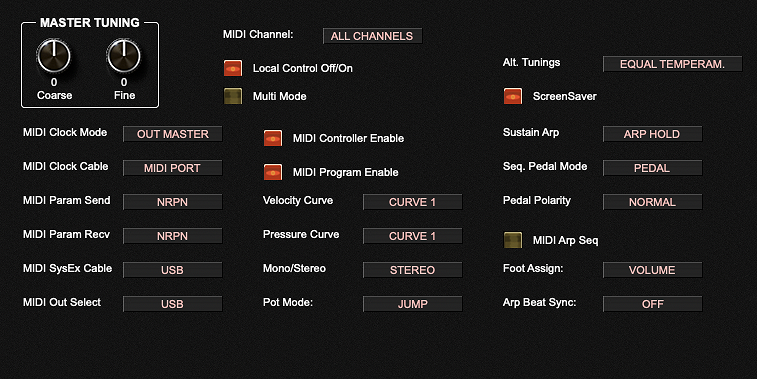

GLOBAL SETTINGS
The Prophet REV2 Globals (Control+G) can also be found under the MIDI window menu. Please note that some settings that are necessary for maintaining a proper MIDI communication are disabled and cannot be changed directly for the editor.

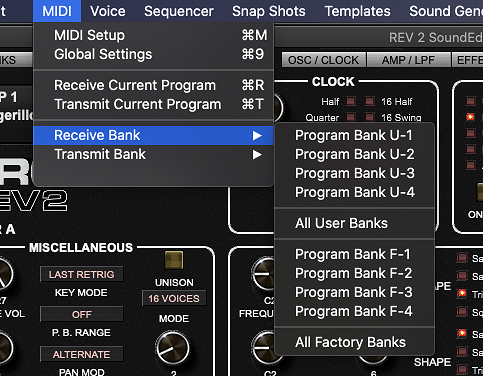

MIDI WINDOW MENU
Here you can access all functions that will enable the editor to communicate with the Prophet REV2 and sync the data by receiving all banks.
In the MIDI Setup you can configure which MIDI ports should be used to communicate with Prophet REV2.
Global Settings panel lets you view all Prophet REV2 Globals.
Important. Changes made by the editor are not saved automatically on Prophet REV2.
To write global settings changes you need to enter and exit Globals mode directly on the Prophet REV2 panel.
