Kurzweil SP4 and SPS4 Keyboard Sound Editor

The SP4 SoundEditor is a full-featured Editor/Librarian and Sound Development tool designed for Kurzweil SP4 keyboards. SoundTower's Editor greatly expands the editing experience by displaying every editable SP4 parameter in a series of logical, easy-to-use graphical interfaces. SoundEditor allows you to create, edit, organize and store SP4 Programs, Setups, and Effects. Through a standard MIDI connection (DIN or USB), SoundEditor can receive and transmit individual Programs, Setups, Effects, or entire banks to the SP4.

The SP4 series was originally developed and introduced to the market as a piano keyboard with a very limited editing capability. This has changed with the introduction of the SP4 OS update 2.10. The SP4 is equipped with a very similar sound engine as the PC3LE synthesizer and with permission and help from Kurzweil Music research group - YCRDI, we have designed the editing software that opens up many features of the PC3 engine for SP4 users to enjoy. Unlike the PC3LE, the SP4 does not offer much of editing on its front panel. You will be amazed what you can find inside this rather simple looking piano keyboard. To your surprise, you will be able to access and use many features that normally are not listed in SP4 specifications. The editor will make possible for you to reach inside and unleash the amazing power of the Kurzweil sound technology.

Please note! The editor is not a software instrument and it will produce no sounds unless connected with the Kurzweil SP4 series keyboard.

SUPPORTED MODELS:  SP4-7, SP4-8, SPS4-8

SPECIFICATIONS AND LIST OF FEATURES:

PROGRAMS:

• Editing programs on all 16 channels
• Editing of all SP4 program and layer parameters
• Editing of FX program parameters and routing
• Editing of VAST system and Algorithm wiring
• Add and remove Program layers
• Editing of all KB3 Program parameters
• Utilize program locations above the factory designated 2 ROM banks. (Accessible only via MIDI)
• Import of 100’s of PC3LE VAST and KB3 ready programs
• Program Librarian.with the ability to load programs for audition without a need to load them in to Program banks

SETUPS:

• Editing of all 4 setup zones
• Selecting Programs for zones and setting up many parameters that are not possible to be accessed or changed by the current editing scheme on the front panel
• Setting up the Key triggers
• Setting up the arpeggiator which is otherwise not available on the SP4
• Editing and applying of Velocity and Shift patterns
• Assigning Riffs/Songs imported from the PC3LE system
• Import of PC3LE Setups (first four setup zones)

EFFECT SYSTEM:

• Selecting FX chains for Inserts, AUX 1 and 2 and overrides
• Editing of FX Chains
• Editing of FX Chain boxes (components)
• Insert, remove and import of FX chain components
• Import of FX chains from the PC3LE system

OTHER:

• Import of Riffs/songs from the PC3LE system
• Various MIDI controller tools for use with the SP4’s like sliders, pads
• And many other tools that may aid you to program and use the SP4 in many different ways

SP4 SoundEditor Download

PC3 SoundEditor User Guide PDF

Kurzweil Music Systems

Kurzweil Set List - PC3/K/LE website to share programs and setups

SHORT OVERVIEW

The SP4 is an incredibly deep and complex instrument with many programming options. SoundEditor has been designed to make the programming and editing process as simple and easy to use as possible while providing all of the functional control needed to adjust every parameter. A few of SoundEditor’s editing windows are shown below.

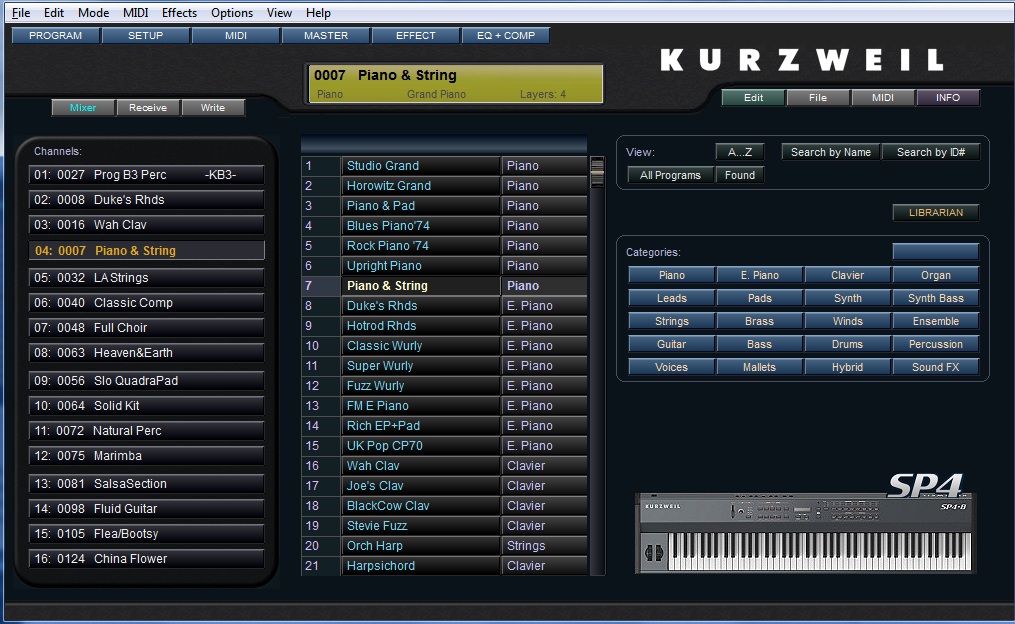

PROGRAM BANK

The SP4 is a powerhouse of sound. There are 256 user programmable patches that are always available on 16 channels and 100’s more that the editor can make available via MIDI.access.

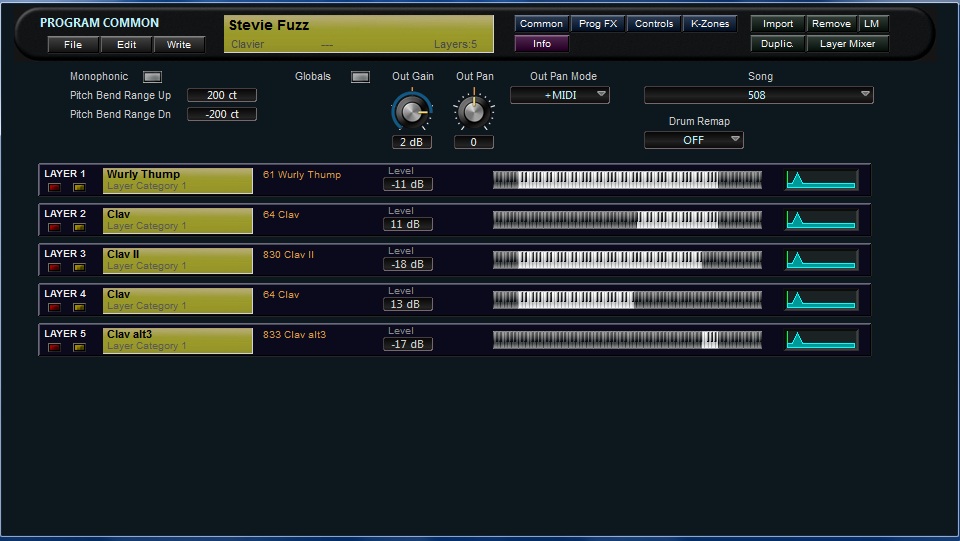

SP4 PROGRAMS

Each Program can have up to 32 unique layers that can be spread over the keyboard range or particular keys. Layers can be added or imported from other Programs.

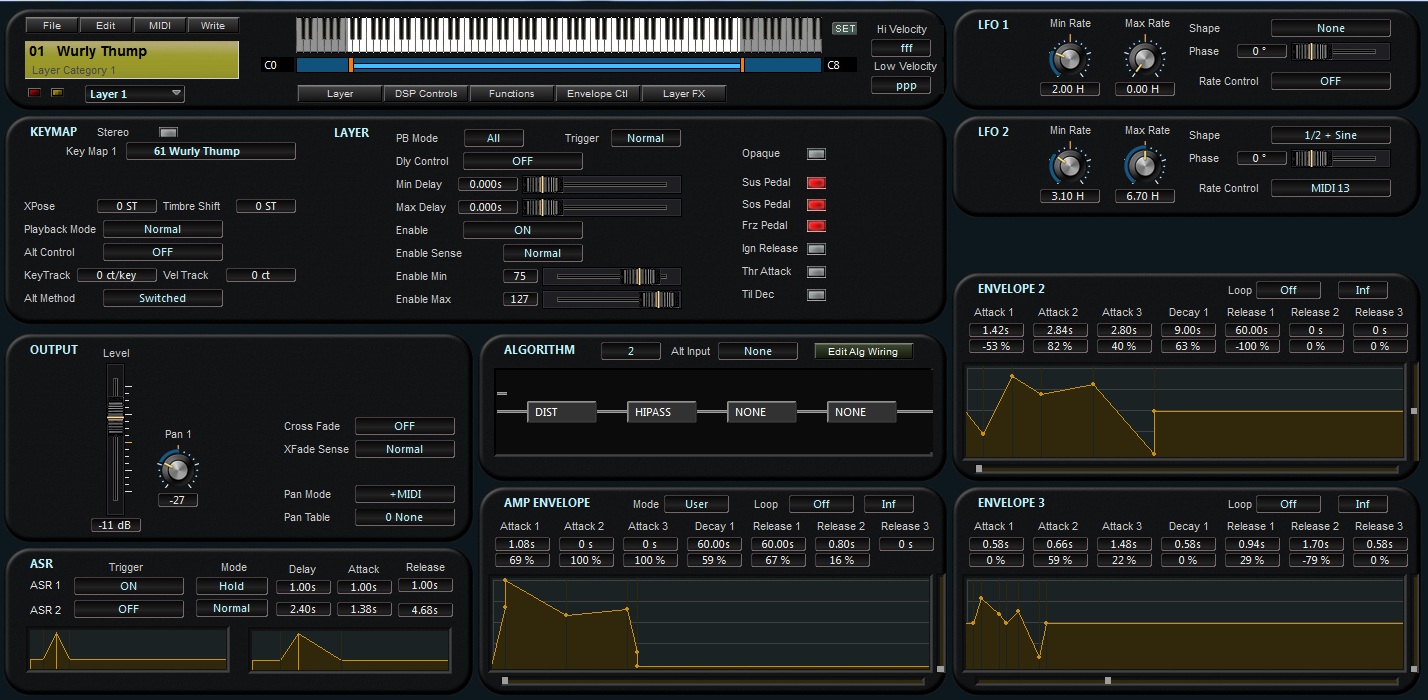

PROGRAM LAYERS

Every Program Layer can have 2 stereo keymaps (multisamples) assigned and routed through different DSP algorithms and effects. Layers have their own sound envelopes, LFOs, modulations and many other sound parameters.

ALGORITHM AND DSP CONTROLS

You can choose from 1024 Factory Algorithms and create another 1024 User Algorithms, all with different combination of blocks, input and output routings and  DSP function selection.

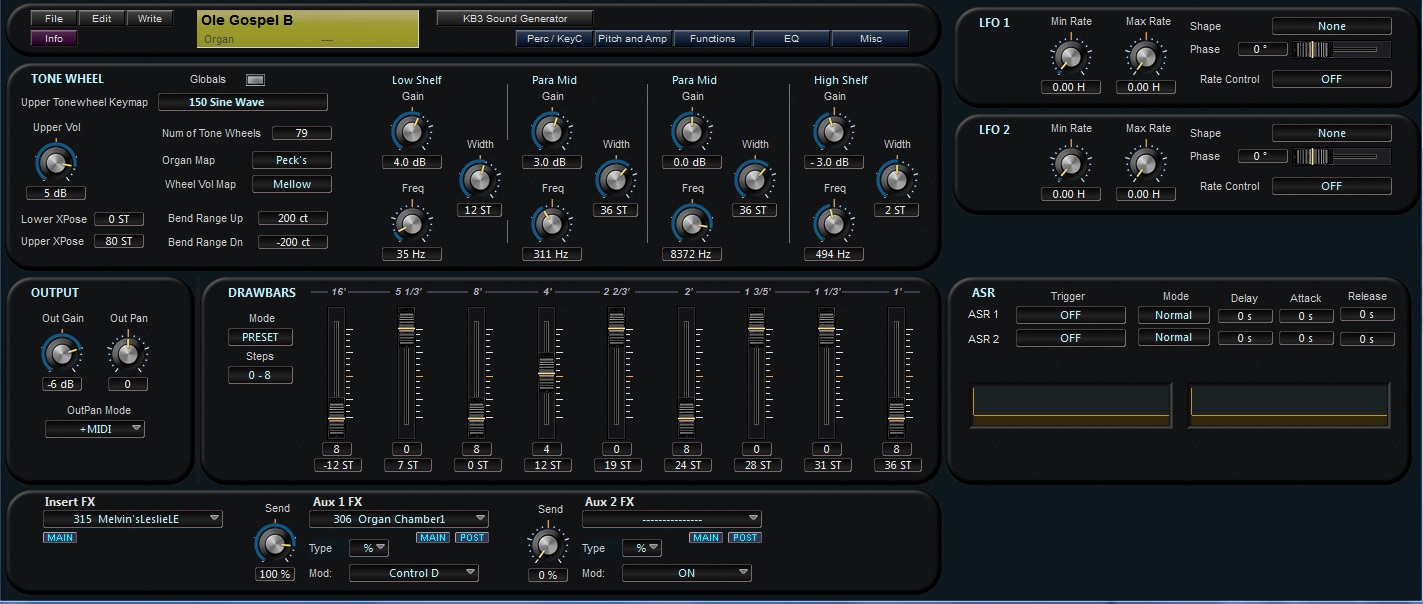

KURZWEIL KB3 INSTRUMENTS

KB3 Programs are unique instruments with a capacity to create organs, pads and incredible lead sounds.

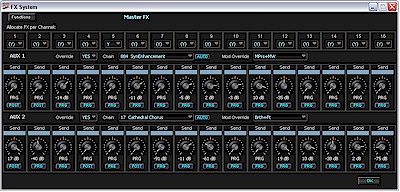

EFFECT SYSTEM

A Master FX window provides a global view and control of the effect assignments on all 16 MIDI channels.

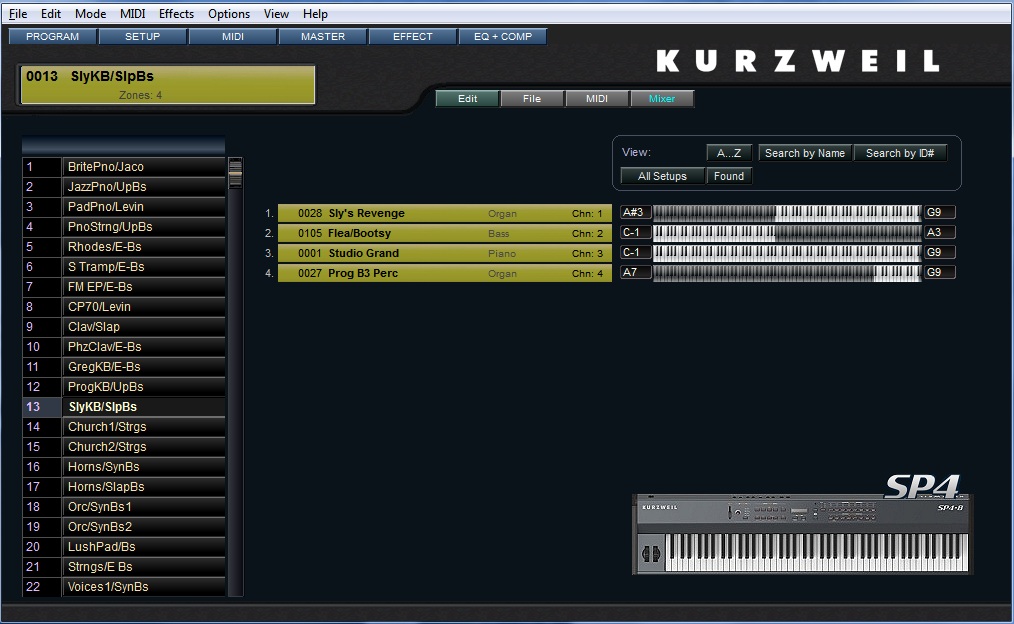

SETUP BANKS

Each Setup can consist of up to 16 Programs with individual MIDI channel and control assignments. Programs can be added or imported from other Setups.

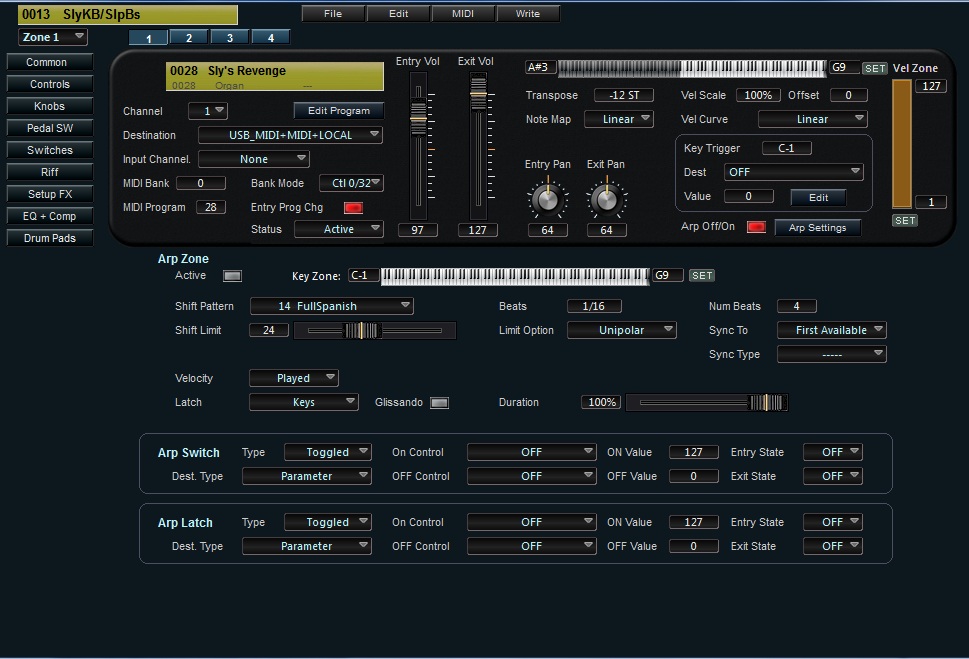

PERFORMANCE SETUPS

Each Program in a Setup can be customized with unique entry and exit values for physical controllers, Pan and Volume messages, Program Change messages, MIDI Bank Select messages, etc.

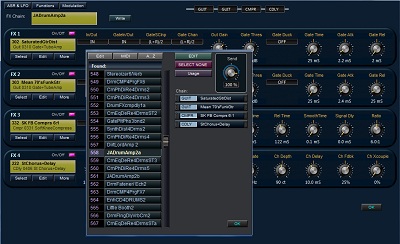

FX SYSTEM EDITING

The editor lets you select and edit hundreds of factory FX Chains for inserts, AUX 1 and  2  and FX overrides.

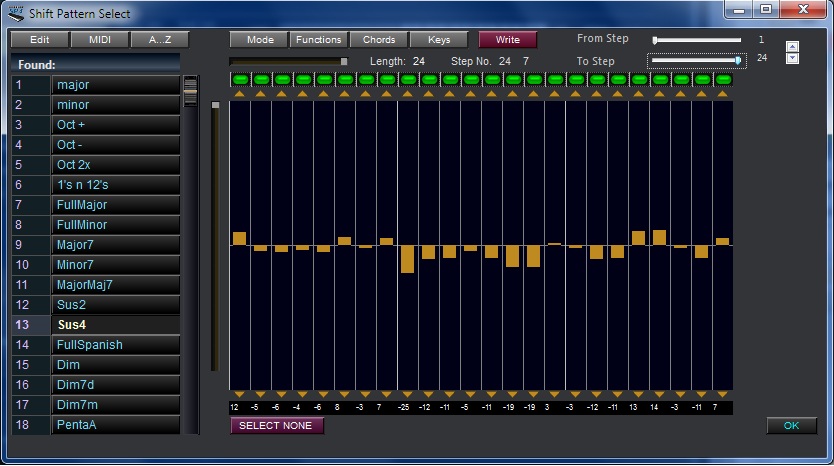

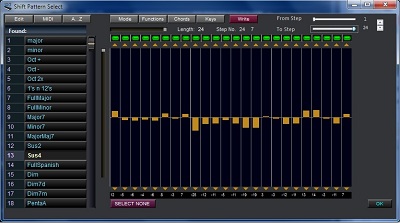

PATTERN EDITING

The editor offers so called Shift and Velocity Pattern editing.

The Shift and Velocity Patterns are commonly used in the PC3K and PC3LE arpeggiators.

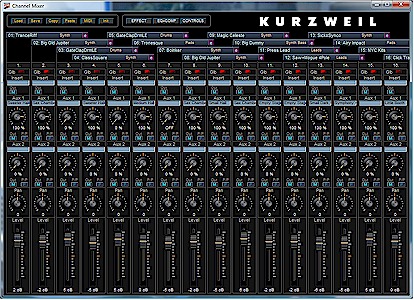

PROGRAM CHANNEL MIXER

The Program Channel Mixer allows you to control Volume, Pan, FX, and other parameters for each Program assigned to the 16 MIDI channels.

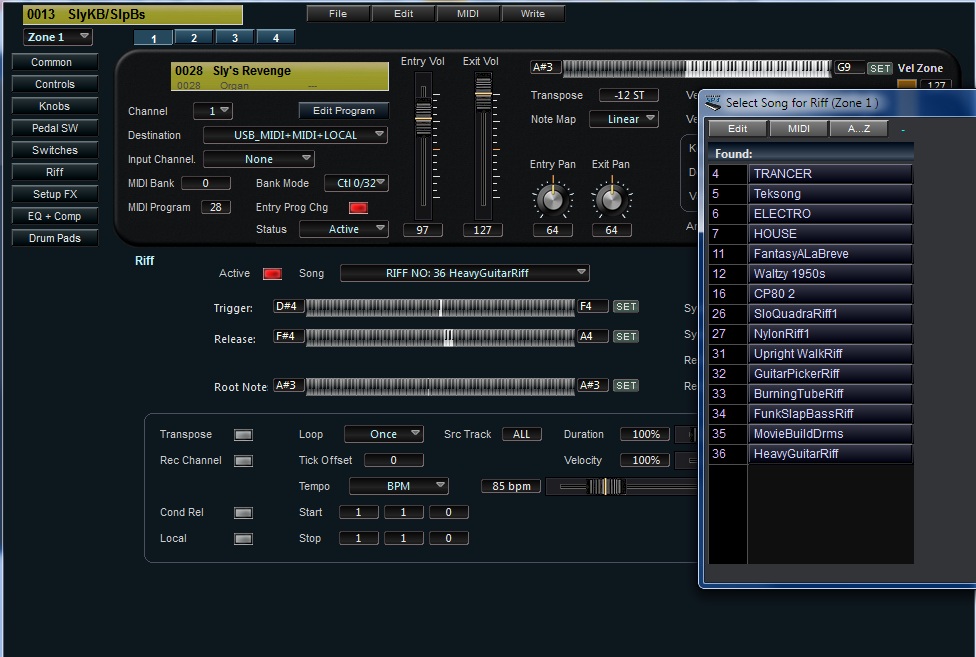

IMPORT OF RIFFS AND SONGS

The SP4 editor offers importing of Riffs/Songs that are found on the PC3LE.
