MIX MODE SELECTION

To change QS Mode from PROGRAM to MIX mode click on Mode Button:

Selection of MIXES for editing is done in the same way as Selecting PROGRAMS in Program mode: By clicking on Bank Tab and name of the Mix you want to display:

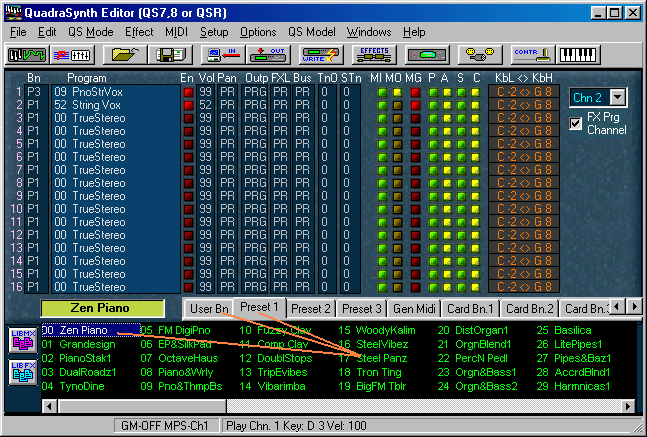

Here, I selected Zen Piano from Preset 1 Bank. You may notice that QS in Mix mode is little bit slower to send data. This is because each time you selecting MIX, QS has to load 16 programs to its 16 program buffers + MIX to mix buffer + FX to effect buffer.

Note: Whenever you select PROGRAM, MIX or EFFECT for playing or editing - select Program, Mix or Effect is placed by QS into buffer. In yet simpler words you always playing what is currently loaded into QS memory buffers not what is in QS banks. By switching through QS Programs you are actually "recalling" them. Editing is also done in memory buffers and if you change some parameters and then switch to other Program or Mix without "WRITING", all changes will be lost!

QSEDITPRO displays QS Mixes on Mix panel above bank Tabs. This panel shows all Mix parameters in columns.

Col.1 - Channel Number (1 -16) corresponding to 16 Midi channels  (If Channel's MG setting in not enabled).

Col.2 Bank Indicator of program assigned to a channel (UB - User Bank, P1 - Preset 1, C1...16 Card Bank)

Col.3 Program Number and the name of the Program assigned to the channel.

Col.4 Channel Enabled ON/OFF

Col.5 Channels Volume Level (0 to 99)

Col. 6. Pan: <3 most left; <> center, 3> most right; PR (Program)  -Channel will use pan setting from the program assigned to the channel.

Col. 7 Output; L/R -left and right (output 1 an 2); AUX (output 3 and 4); OFF; PR - As assigned in channel's Program.

Col. 8 Effect Level applied to channel (0 - 99 and PR)

Col. 9 Effect Bus Routing (1 - 4)

Col.10 Channel Tune by Octave -2,-1,0,1,2

Col.11 Semi tune (-12 to 12)

Col.12 Midi IN message filter ON/OF

Col.13 Midi OUT message filter ON/OFF

Col.14 Midi Group Channel ON/OFF

Col.15 Pitch Bend Filter ON/OFF

Col.16 Aftertouch Filter ON/OFF

Col.17 Sustain Pedal ON/OFF

Col.18 Controllers ABCD enable ON/OFF

Hint: If you can't remember what is what on QSEditPro, move mouse pointer over any control and tooltip description will be displayed.



If you want to create Mix from scratch click right mouse on Mix List and select “Initialize” from Mix Bank pop-up menu



Mixes In QS can be used in three different ways depending for your application:

Programs will be played on channel that is assigned for Midi Program Select in Global Settings. MIDI GROUP CHANNEL setting has to be enabled for channels to be played.

With MIDI GROUP CHANNEL disabled, program in Mix channel 1 will be played on midi channel 1, program in Mix channel 2 will be played on midi channel 2 and etc.

You can setup few programs to be played on MIDI GROUP CHANNEL and the rest on corresponding midi channels.

Important: QSR’s Midi Group Setting is referred as QS6,7,8 and other QS  keyboard's ON/OFF setting.

Note: In order for channels to be set to play, channels have to be enabled (column “EN” on Mix parameter display).

AUDITIONING IN MIX MODE

To audition different channels in Mix mode using external keyboard you have to select keyboard’s transmitting channel to either MIDI GROUP CHANNEL if “MG” setting is enabled or corresponding Mix channel if “MG” setting is disabled.

If you using Computer Keys or Mouse Piano you can change midi channel to correspond with Mix channel using 1-16 channel buttons on Mouse Piano Window.
