EDITING QS EFFECT

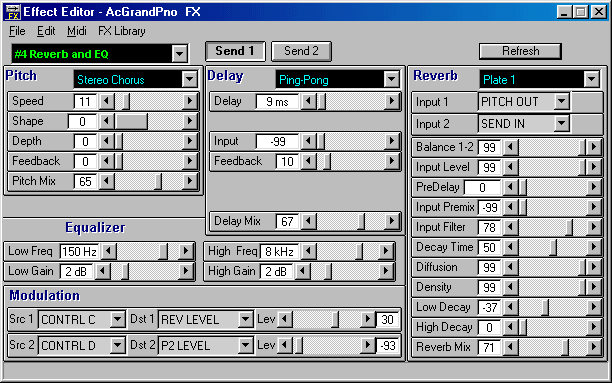

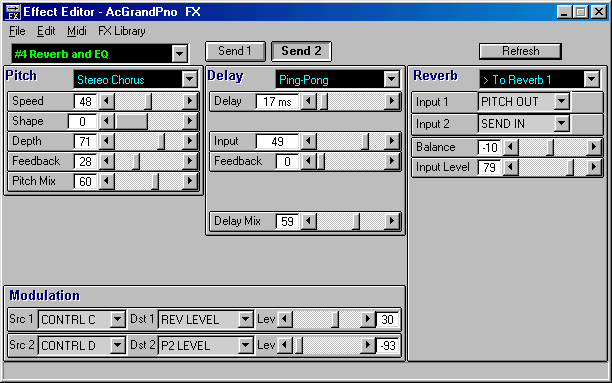

To edit current QS Effect click on QS Effect Icon located on the main QSEDITPRO window toolbar.

Each time Effect Edit window is opened the current FX is dumped to the editor and displayed in this window.

In Program Mode, the current FX is the effect from QS memory location of the selected program.

Every time you switch from one QS program to the other, the selected program and FX is placed by QS into temporary Program RAM buffer and Effect RAM buffer that is retrieved by QSEDITPRO.

In Mix Mode, the current FX is the effect from QS memory location of the program assigned to Mix FX channel. Changing Mix Effect Channel and also changing the program on Mix Effect Channel in a mix will cause a change of the effect in Effect RAM buffer.

Important: When writing/saving effect in Mix Mode make sure that you writing the effect to the same location as the program in user bank that is assigned to Mix FX channel.
