EDITING COMBINATION PARAMETERS

COMMON PARAMETERS

To edit Common settings click button to display Common parameters window:

MASTER EQ

Clicking the button opens the master equalizer window.

From here gain (low, mid and high), frequency (low, mid and high) as well as mid Q  adjusted with the sliders.

The choice of controller for low and high dynamic modulation is done though name boxes:

ARPS

To display Arp A or B settings click on the corresponding Arp panel:

Use Arpeggiator window to change Arp settings. If you like to edit any the USER patterns, select any USER pattern (000-XXX) and click EDIT button.

ROM patterns P00 to P04 are not editable.

MFX and INSERTS

You can use panel sliders to change Send or Return settings or click on switches to turn effects ON/OFF.

By clicking on Effect panels you can display full effect setting of selected MFX or Insert FX (see MFX and MFX Library help files for more in-depth information):

CHANNELS

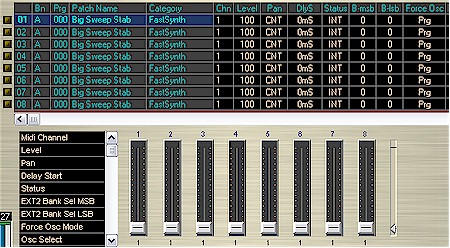

The grid displays all editable 8 channel/track parameters.

You can change parameter values in two different ways. If your computer mouse is equipped with the scroll wheel, you can simply click and select any parameter on the grid and turn the wheel to change a value. Another way of changing parameters is to use mixer sliders. You can select different parameter groups (level, pan and etc.) from the list and all sliders will adjust themselves to the actual value position. You can also use the group slider to linearly adjust all sliders in the same time.

PATCH ASSIGNMENT

To select a different patch for the selected track, click on the Program name.

You can assign the Programs for the selected track either by using the list displaying Programs in banks or by a Program categories.

KEYBOARD AND VELOCITY ZONES

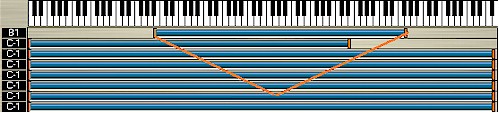

To adjust keyboard lower and upper zone use computer mouse to drag zone limits:
